Lunabotics

Wheel design and fabrication for Northeastern SEDS’ rover in the 2026 NASA Lunabotics Competition.

Role

Mechanical Design Engineer
Northeastern Lunabotics / SEDS

Period

September 2025–May 2026

Methods

CAD, sheet-metal bending,
riveting, and welding

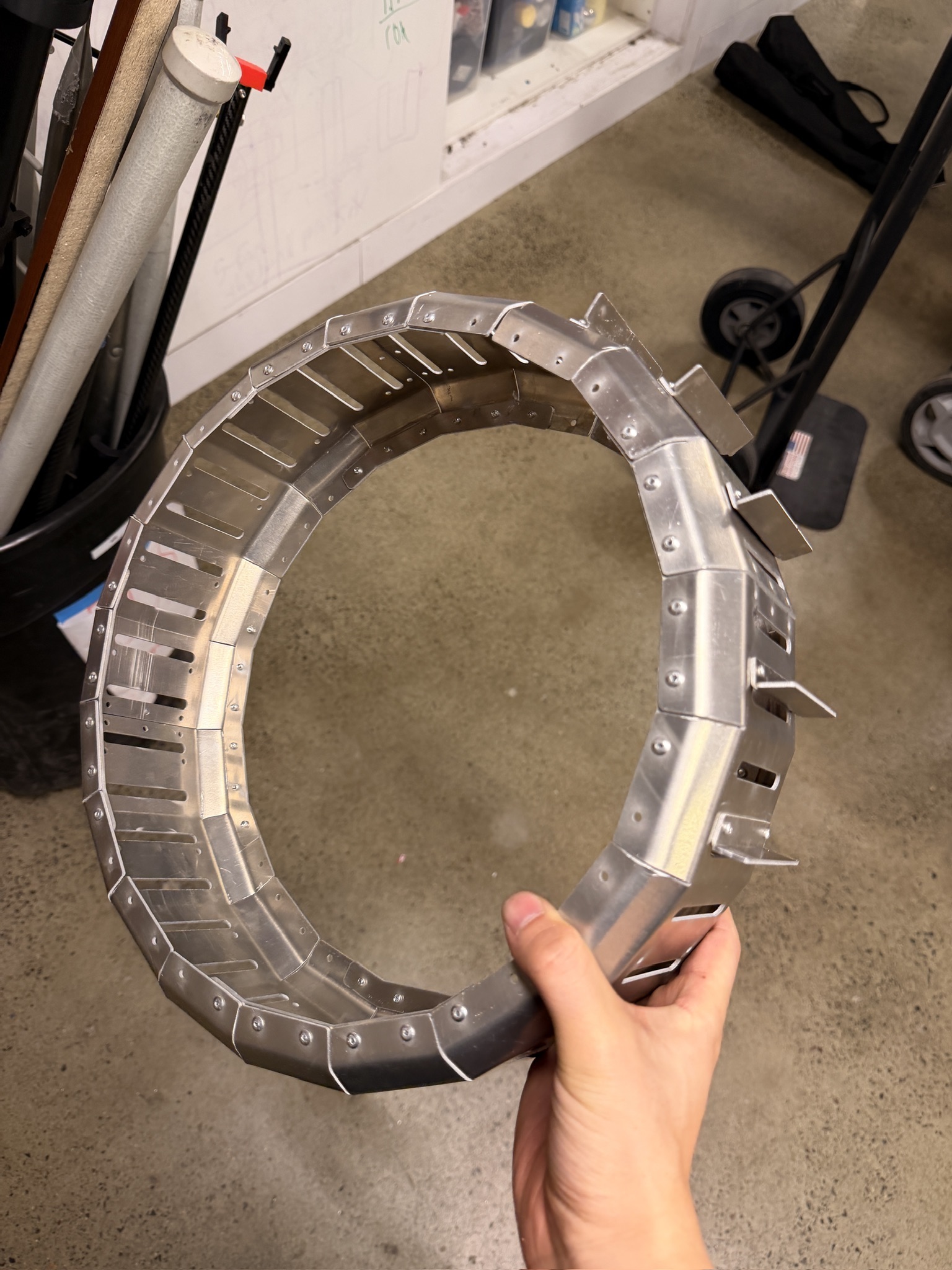

Fabricated rim before installation of the central support.
Wheel with the central support assembly installed.
01 / Project scope

Mechanical design and fabrication

The rover excavated, transported, and deposited simulated lunar regolith. Its mobility system combined a rocker-bogie arrangement with four-wheel swerve drive.

My primary work covered the wheel assemblies. I also contributed to fabrication and assembly of the excavation and conveyor system with the mechanical team.

Responsibilities

  • Design and personally fabricate metal wheel assemblies.
  • Use sheet-metal bending, riveting, and welding during fabrication.
  • Present the wheel design at a Critical Design Review for approval to manufacture.
  • Contribute to rover assembly and testing with the mechanical team.
02 / Wheel design

Rim, support, and hub construction

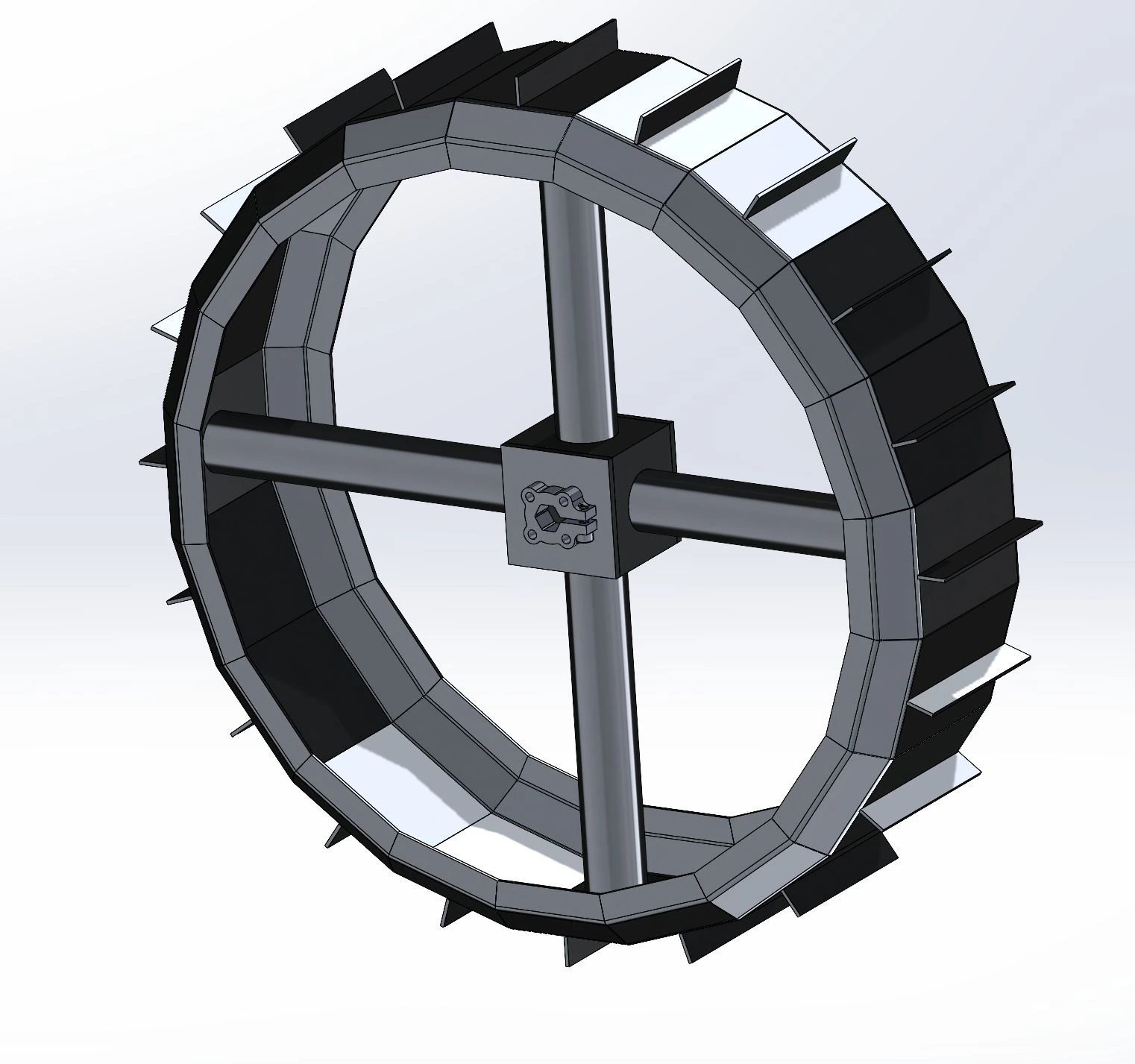

Earlier CDR wheel concept. The fabricated support assembly differs from this configuration.

The CDR design uses a segmented aluminum rim with traction features, a central hub, and supports between the hub and rim. The rim sections use bent sheet material, while the hub interfaces with the wheel-drive hardware.

The review material documents waterjet-cut sheet parts, formed rim segments, tubing, and a commercial hub. These drawings describe the CDR concept; the photographs above show the fabricated wheel assemblies.

Wheel construction
RimFormed sheet-metal sections
Traction featuresGrousers around the rim
Central assemblyHub and structural supports
Fabrication methodsBending, riveting, and welding

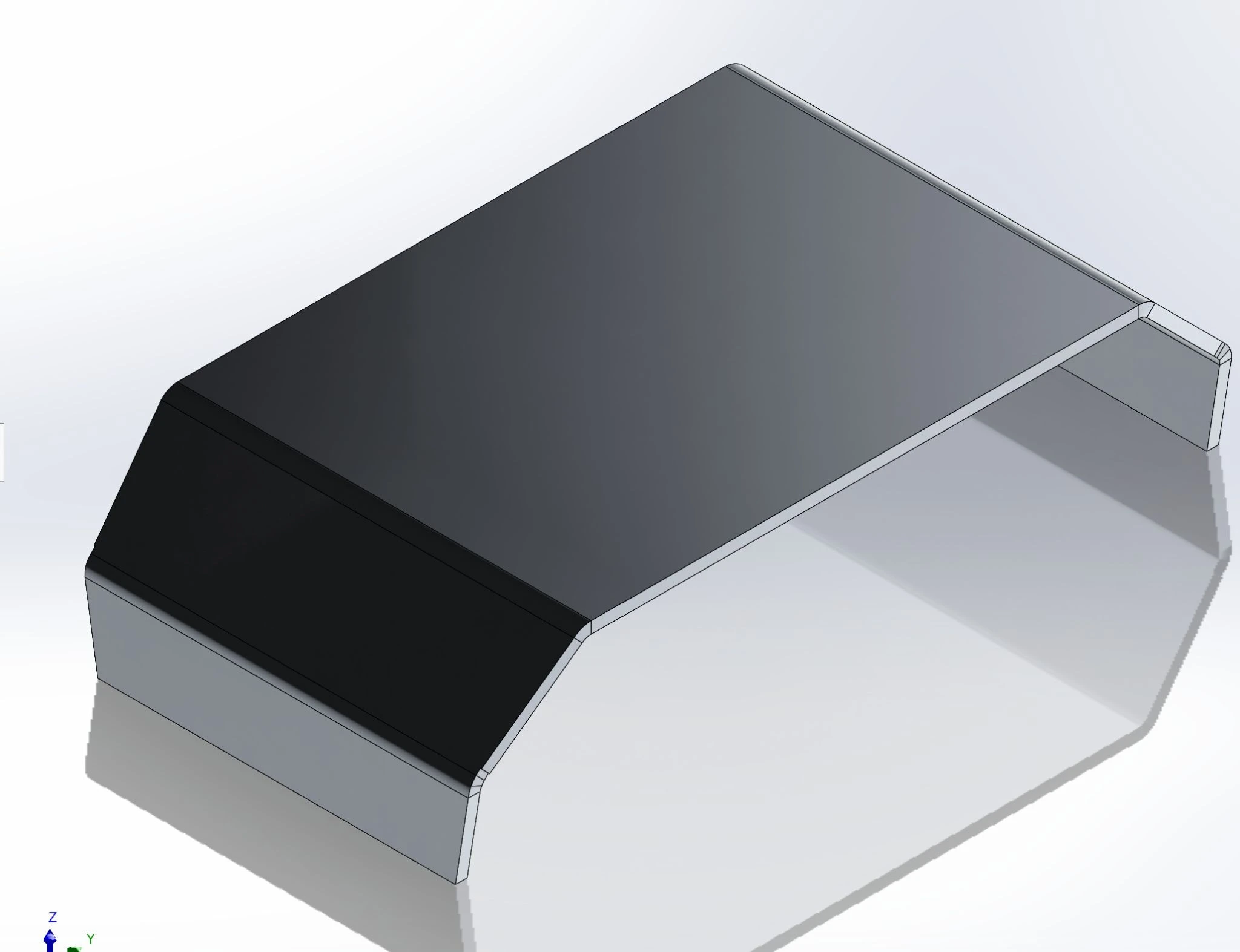

CDR detail of a formed rim segment.

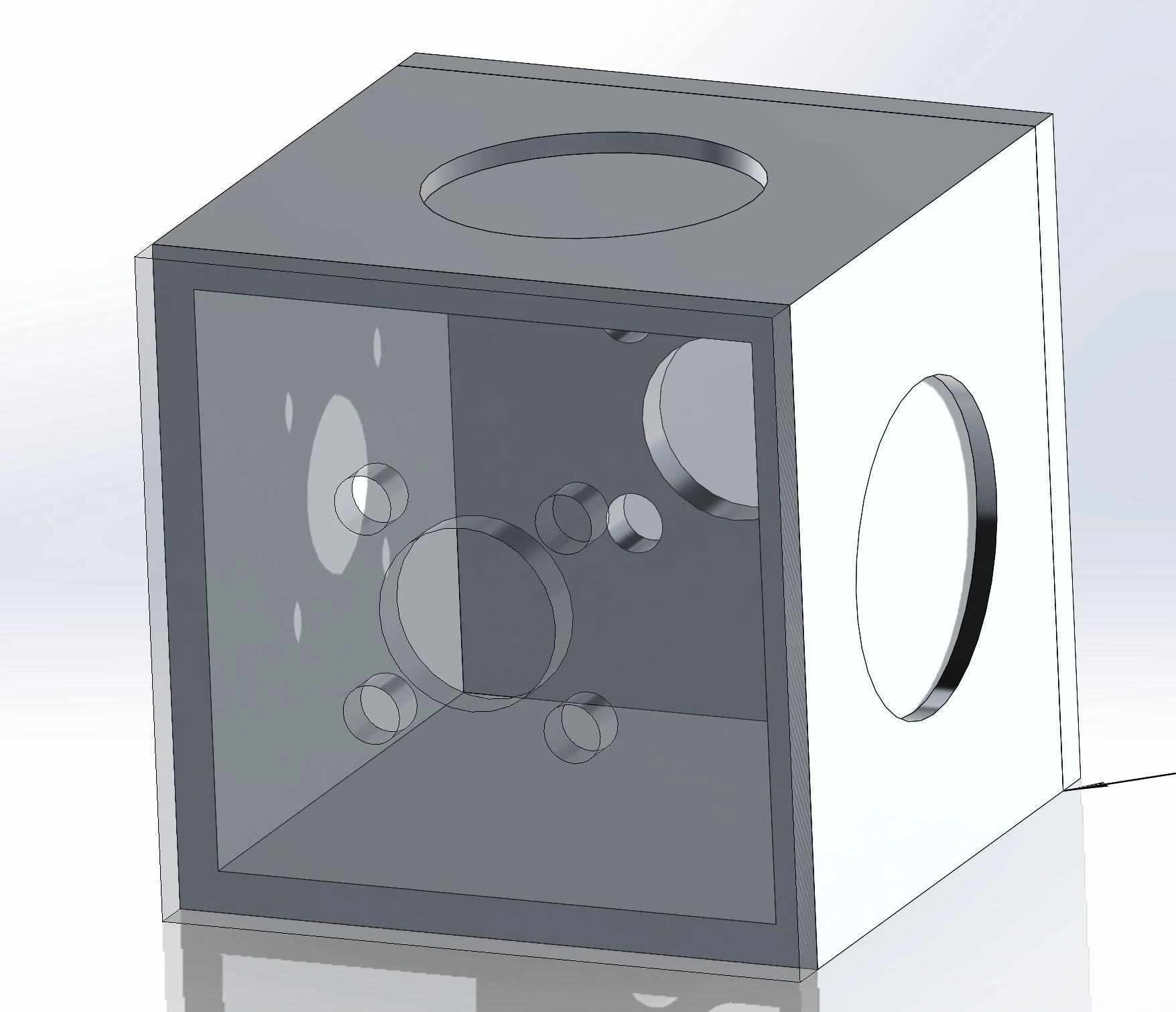

CDR hub concept showing the drive-interface geometry.
03 / Fabrication

Wheel fabrication and assembly

Personally fabricated the wheel assemblies using sheet-metal bending, riveting, and welding. The fabrication photographs show the segmented rim and the wheel after installation of the central support assembly.

Assembly required connecting the rim sections and locating the hub and supports within the wheel. The repeated rim sections produced multiple joints to assemble around the circumference.

Documented fabrication work
FormingBend sheet-metal sections for the rim.
JoiningRivet and weld components within the wheel assembly.
Central supportAssemble the hub and support structure within the rim.
Rover assemblyIntegrate the wheels with the mobility system.
04 / Rover integration

Wheel and mobility interfaces

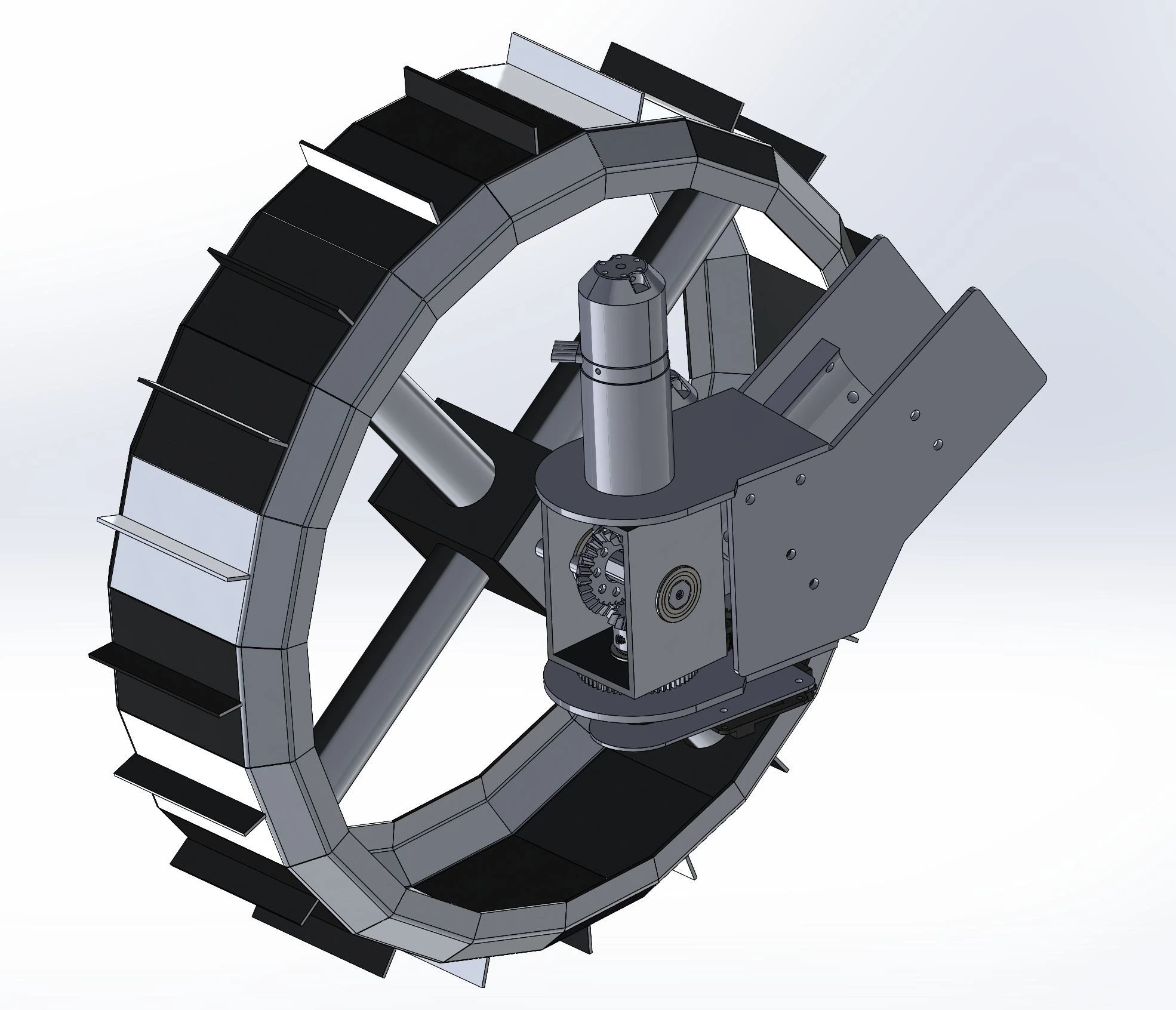

Team CDR assembly showing the wheel and swerve module. Shown for mobility-system context.

The wheels interface with the rover's swerve modules and carry the loaded vehicle during driving and excavation operations. The surrounding drivetrain and suspension are team assemblies.

The mechanical design review considered wheel clearance around the excavation system and operation in simulated regolith. My wheel work formed one part of the complete rover's mobility system.

I also helped build the excavation and conveyor system, which carried up to 70,000 cm³ of simulated regolith.

05 / Results

Competition operation

The fabricated wheels supported the 110 kg loaded rover through full competition runs without wheel failure. The mechanical team built and tested the rover for the 2026 NASA Lunabotics Competition.

Presented the wheel design at a Critical Design Review and received approval to manufacture. Also helped the team secure a competitively awarded $1,000 Northeastern PEAK Experiences Grant.

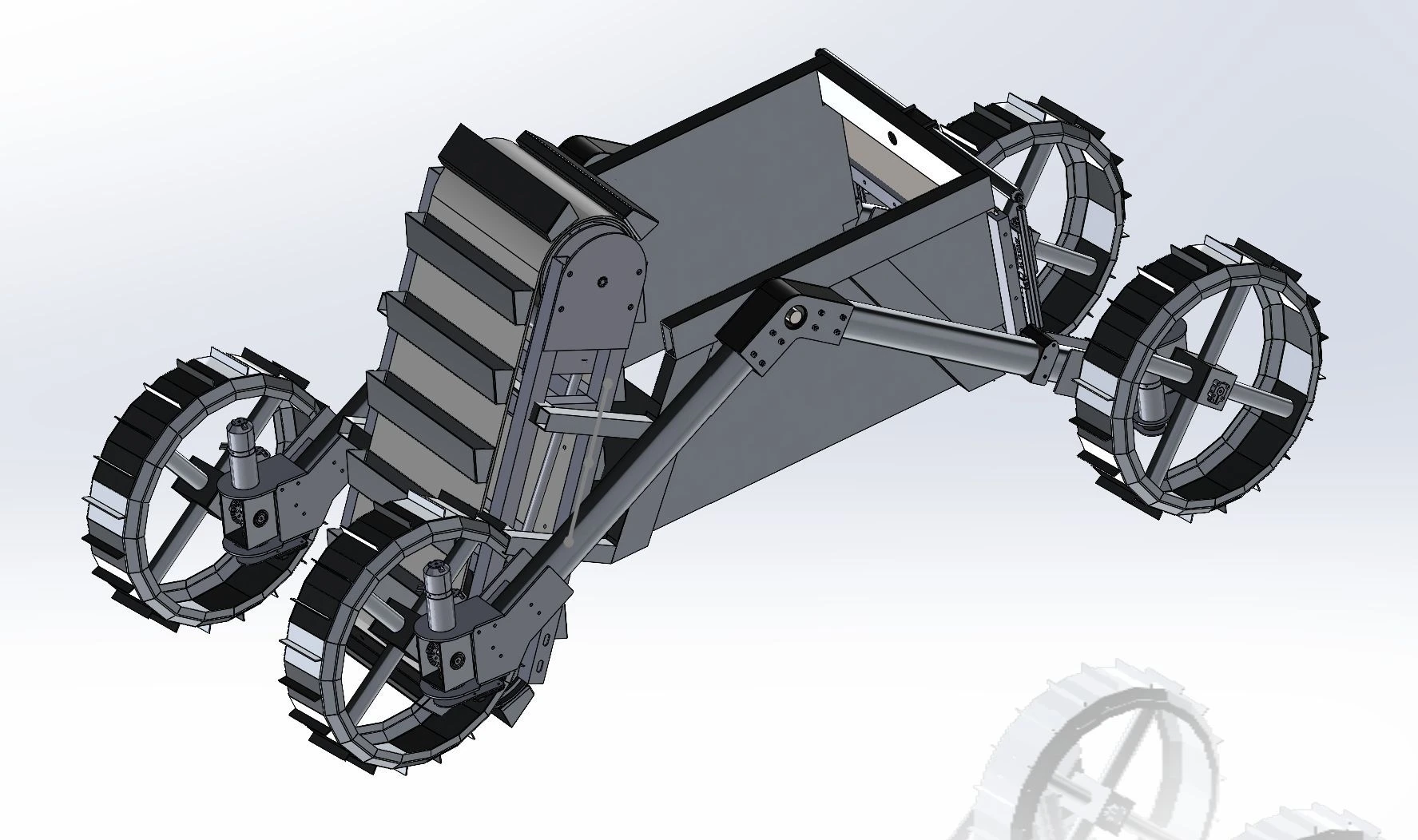

Team rover CAD from the mechanical CDR. This is a design view, not a photograph of the competition hardware.
Project period

Completed mechanical project work for the 2025–2026 competition season. CAD figures show the earlier review configuration; fabrication photographs show my wheel assemblies.
